Products > Thermal Insulation > Hot Insulation > Isoflex Elastomeric Rubber Foam

ARMAFLEX / ISOFLEX ELASTOMERIC RUBBER FOAM

Thicknesses:

9, 13, 25, 32 mm

Presentation:

Boards, rolls, tape or pipes.

Thermal conductivity:

0.032 – 0.023 W/mK

Temperature for its use:

-50 to 115ºC

Uses:

Air conditioning and ventilation ducts, equipments and machine insulation, coating of pipes of industrial use or for refrigeration, sound absorbing insulation of booths and ducts.

  •  Installation Manual

  • Adhesive. Technical details

  •  Armafinish Paint. Technical details

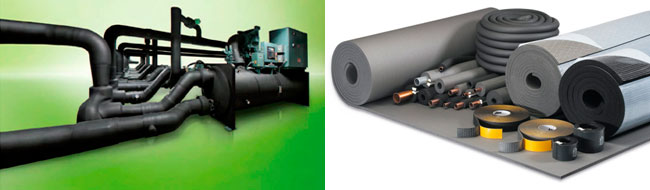

termicas calor-isoflex

Flexible Elastomeric Rubber Foam, fire resistant and elaborated for pipes, tanks and ducts insulation. Its presentation can be in preformed tubes specially designed for pipe insulation or flexible boards for multiple uses.

Increasing technical thickness

The most important functions of a thermal insulation material used for refrigeration installations are condensation control and energy saving during a long period of time. As time goes by, moisture can accumulate inside the insulation, producing an increase of thermal conductivity. This also means that energy loss increases and the insulation superficial temperature decreases. When the superficial temperature is lower than the dew point, condensation is formed.
A continual control of condensation is determined by two factors:
- A low value of λ that implies a smaller insulation thickness.
- A high value of μ that guarantees the behavior of the insulation material during the whole time that the installation is used.
This combination avoids penetration risks and moisture accumulation.

Integral quality assurance system.

With the aim of guaranteeing a constant quality of the service and product, as well as ensuring a responsible environmental management, Armacell submits itself to periodical audits according to UNE EN ISO 9001 and UNE ISO 14001 norms.

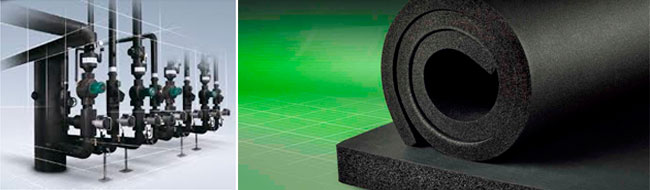

termicas calor-isoflex-2
termicas frio-isoflex-accesorio-1

FINAL COATING PAINT

With the objective of protecting the product against UV rays or to give it an optimal aesthetic finish, ARMAFINISH paint is used, which is specially designed to achieve an excellent adhesion, flexibility and resistance to climatic conditions.
Colors: white, pearl gray, brick red, blue and green.

Presentation: 1 or 2.5 lts
Performance: 10 m2 x lt.

termicas frio-isoflex-accesorio-2

ADHESIVE

Longitudinal and horizontal unions have to be impregnated with adhesive to achieve an optimal sealing. The S520 adhesive is formulated to achieve an excellent material union, as well as a sustained behavior against the wide range of temperatures.

Presentation: 1 or 2.5 lts.
Performance: 10 m2 x lt.

termicas frio-isoflex-accesorio-3

SELF-ADHESIVE TAPE

To ensure that the material is correctly joined, avoid thermal leakage or isolate surfaces of difficult access, elastomeric foam tape is used, which comes in rolls and has a self-adhesive side of maximum adherence.

Presentation: Roll of 50 x 3mm x 15 mts.
