Products > Soundproofing > Sound Absorbing > Micro Perforated Panels

MICRO PERFORATED PANELS R8-32 MODEL

Thicknesses:

12 to 18 mm

Presentation:

Perforated panels

Finish:

Natural wood veneer

acusticos absorbentes-madera

The perforated panels are specifically designed for the sound absorbing treatment of horizontal and vertical surfaces.
They are formed by MDF compacted wood of thicknesses from 12 to 18 mm, veneered on both sides with natural wood and one of the finishes selected from our catalog: UV luster, ready to paint wood, semi-matte varnish or textured melanin.

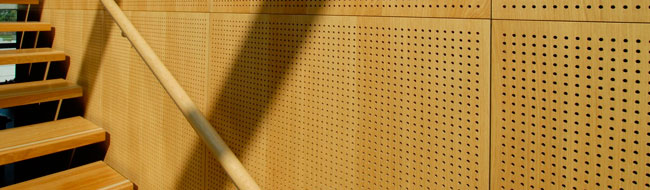

The R8-32 model has got round perforations of a 8 mm diameter and with 32 mm equidistant spaces between each other, which provides an excellent acoustic response to frequencies between 125 and 800 Hz. The wood panels are combined with an installation system through hidden metallic galvanized framing, achieving a perfect aesthetic and functionality.

MICRO PERFORATED PANELS L6 MODEL

Thicknesses:

12 to 18 mm

Acoustic Performance:

125 to 1000 Hz

Finish:

Natural wood veneer

acusticos absorbentes-madera-2

The L6 model has got lineal perforations of a 6 mm diameter with round borders on both extremes, and 25 mm equidistant spaces between each other, which provides an excellent acoustic response to frequencies between 125 and 1000 Hz. The wood panels are combined with an installation system through hidden metallic galvanized framing, achieving a perfect aesthetic and functionality.

MICRO PERFORATED PANELS HILTON MODEL

Thicknesses:

12 to 18 mm

Acoustic Performance:

125 to 4000 Hz

Finish:

Natural wood veneer

acusticos absorbentes-madera-3

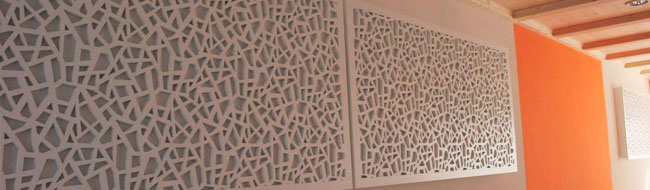

The Hilton model has got random perforations according to an acoustic requirement. This implies a 43,5% porosity, which makes it the panel with the greatest absorbing space in the market. At the same time, it provides a moder look.
It achieves a maximum acoustic performance on frequencies between 125 and 4000 Hz, with absorption peaks of up to 1,08 sab.
