SOUNDPROOFING
Products > Soundproofing > Sound Absorbing > Dropped Ceiling
Soundproofing

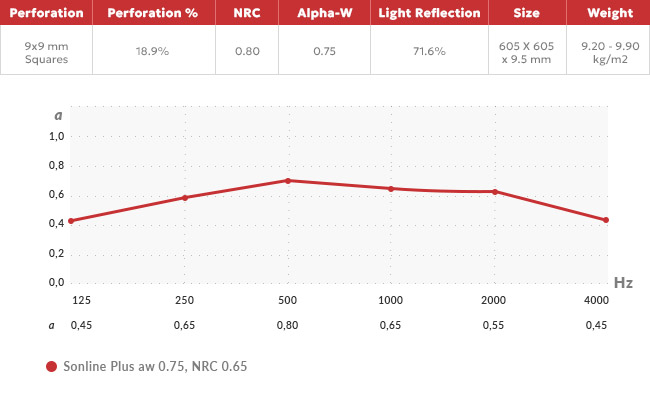

DROPPED CEILING SONLINE PLUS
Brand:
ASTS
Color:
White
Size:
Tiles of 0,65 x 0,65 m
Thickness:
9,5 mm
Separation:
24 mm
Noise reduction coefficient:
NRC 0,65
Light reflectance:
72,8
Perforation percentage:
10,2 %
Design:
Square
Presentation:
8 tile boxes
Description
High efficiency absorbent panels with removable ceiling made of 9.5 mm thick gypsum rock with square micro perforations. They have a gypsum core and are coated on both sides with a highly resistant cardboard sheet. resistant, whose manufacture is guided by strict quality control criteria. At the top, they are covered by a white anti-detachment veil.
On their side seen, they have white laminated textured PVC coating, excellent aesthetic finish, light reflection and dirt resistance.
Its microperforations are designed to provide an aesthetic and innovative final surface, in addition to increasing acoustic performance.
Advantages:
• Excellent aesthetic quality and durability.
• Simple and fast installation.
• Easy adaptation to architectural design.
• Coating with anti-detachment and antibacterial veil.
• Excellent acoustic absorption.
• Control of sound reverberation.
• Easy access for disassembly and reinstallation
• Aesthetic and modern design.

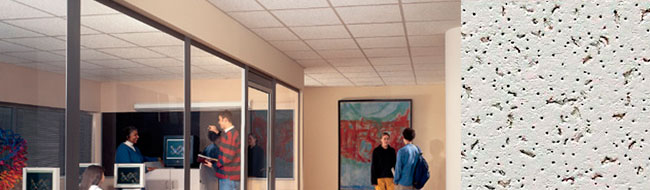

DROPPED CEILING CORTEGA MODEL
Brand:
ASTS
Color:
White
Thickness:
15 mm
Density:
330 - 380 Kg./m3
Size:
0.61 x 0.61 mts panel
Noise reduction coefficient:
NRC 0.60
Light reflectance:
0.82
Finish:
Vinyl latex paint applied at the factory
Fire resistance:
Class A (flame speed rate of 0 to 25)
Thermal resistance:
R- 1.6 (BTU units)
R - 0.28 (watts units)
Edge detail:
Straight
Description
Rigid plate of pressed mineral wool to be used on dropped ceilings with standard modular structure.
Main assets:
• Affordable and provides good acoustic quality
• Latex finish
Typical applications:
• Broad range of commercial interior spaces
• Mass market

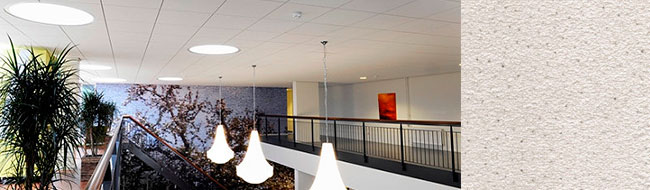

Cielorraso Desmontable MODELO DUNE
Brand:
ASTS
Color:
White
Thickness:
15 mm
Density:
330 - 380 Kg./m3
Size:
0.61x 0.61 mts panel
Noise reduction coefficient:
NRC 0.60
Light reflectance:
0.85
Finish:
Vinyl latex paint applied at the factory
Fire resistance:
Class A (flame speed rate of 0 to 25)
Thermal resistance:
R- 1.6 (BTU units)
R - 0.28 (Watts units)
Edge detail:
Tegular or straight
Description
Rigid plate of pressed mineral wool, with excellent aesthetic quality, to be used on dropped ceilings with standard modular structure.
Main assets:
First-class visual presentation at an affordable price - Attractive fine texture finish
• Can be installed before construction is finished
• Long-lasting and scratch-resistant
• High light reflectance value
• Non-directional surface that reduces installation time and waste
Typical applications:
• Shopping malls
• Health care facilities
• Public spaces
